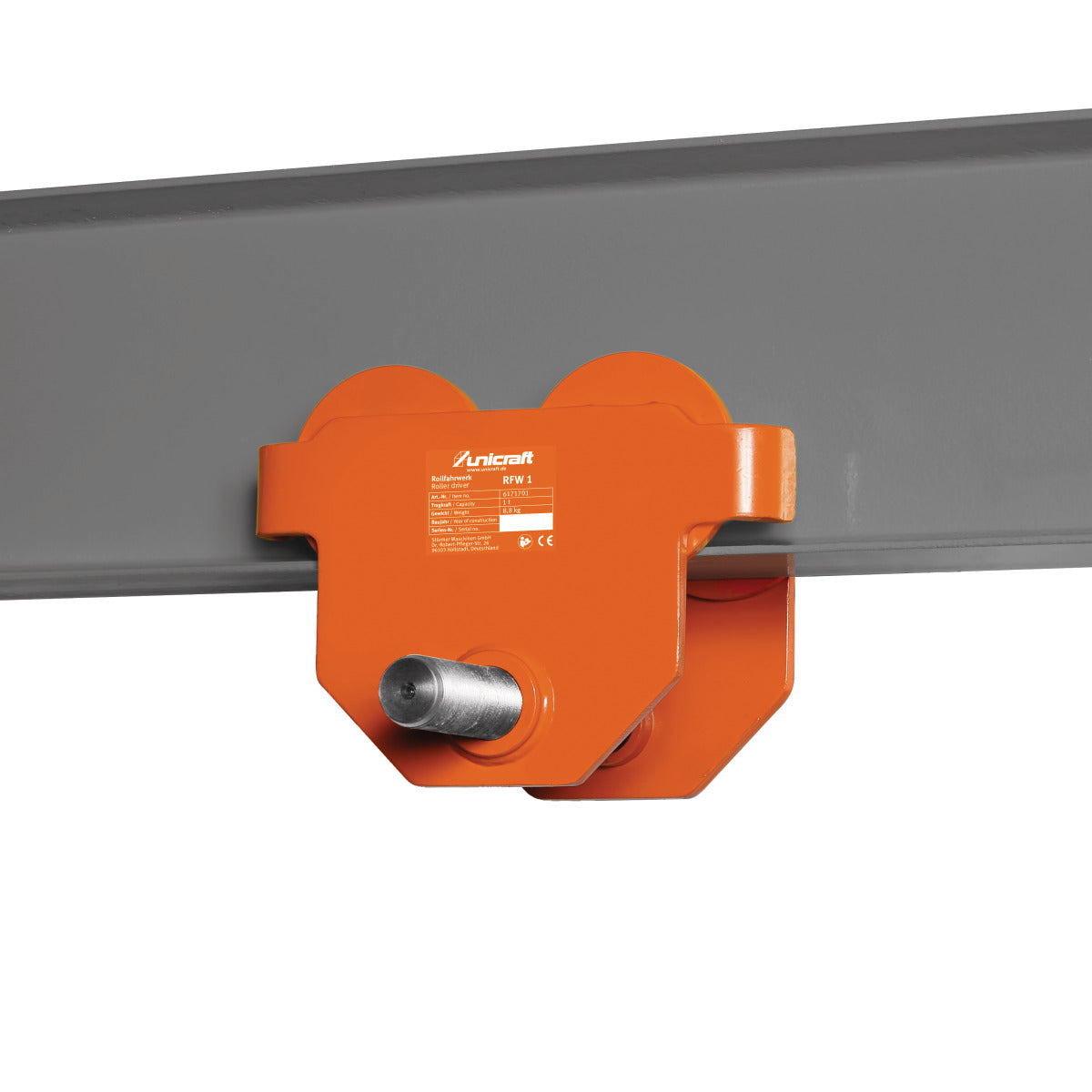

Rolling chassis RFW 1 suitable for gantry crane 1000 kg - | | GGM Tools

• No lateral movement on the traverse thanks to the central suspension of the pulley
• Adjustment to the carrier flange width is done using an eyelet traverse with a counter thread
• Tilt protection as standard
• Load capacity: 1t
• Curve radius min.: 0.7m
• Beam flange width: 58-220mm
• Suitable for carrier type: I 120 – I 600

Dimensions and weights

• Length (product): approx. 300 mm
• Width/Depth (Product): approx. 85 mm
• Height (product): 190 mm
• Weight (net): approx. 9 kg
