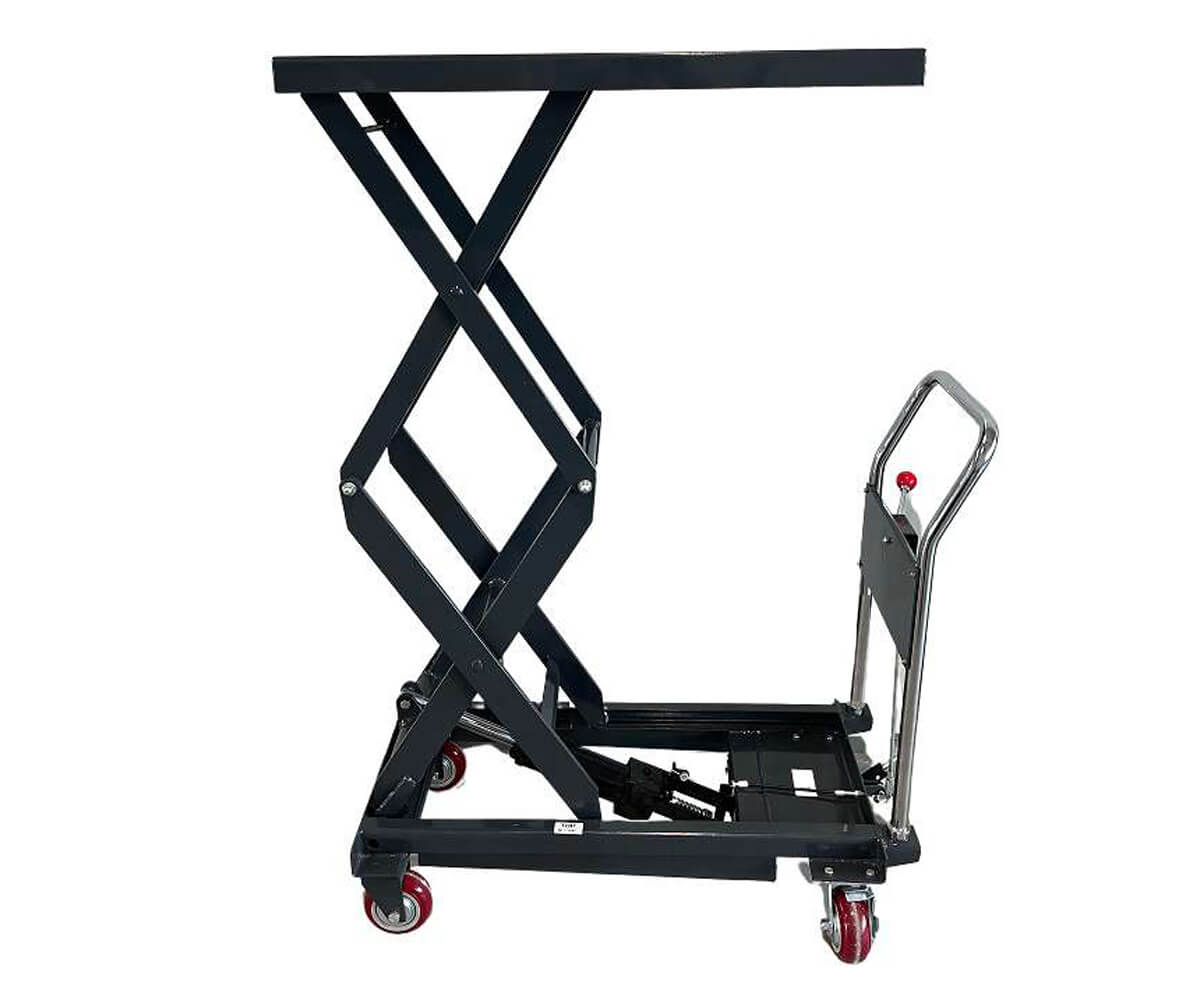

Scissor lift table trolley 500 kg load capacity with double | GGM Tools

Double scissor lift with hydraulic lifting device with 500 kg load capacity

- Robust steel construction
- Hydraulic lifting via foot lever
- Manually operated table lowering
- Foot casters Ø 127 mm with safety wheel protection and brakes on the swivel castors
- Overload safety valve protects operator and pump

General information:
Load capacity 500 kg
Table height min. 350 mm
Table height max. 1360 mm
Stroke per pump movement 13 mm
Dimensions and weights Length (product) approx. 900 mm table length
Table width 520 mm
Handle height 805 mm
Roll diameter 127 mm
Weight (net) approx. 97kg
