Takeuchi midi excavator TB290-2 - all-rounder with 70 HP Yan | GGM Tools

Dimensions:
- Operating weight: 8,820 kg
- Total width: 2,200 mm
- Total height: 2,550 mm
- Transport length (rear sign): 7,000 mm
- Digging depth: 4,410 mm
- Reach: 7,275 mm
- Handle length: 1,960 mm
- Tail swing radius: 1,650 mm
- Tracks: rubber
- Track width: 450 mm
- Ground contact: 2,210 mm
- Ground pressure: 0.376 kg/cm²
- Ground clearance: 370 mm

Motor
- Type: YANMAR 4TNV98CT, 4-cylinder common rail diesel engine with turbocharger, emissions level V
- Exhaust aftertreatment: DPF and DOC
- Rated power according to ISO14396: 51.6 kW (70 HP) at 2,000 rpm
- Displacement: 3,318 cm³
- Fuel tank: 12 l

Hydraulics
- Control circuits: 4 hydraulic control circuits, 3 of which are proportionally controlled

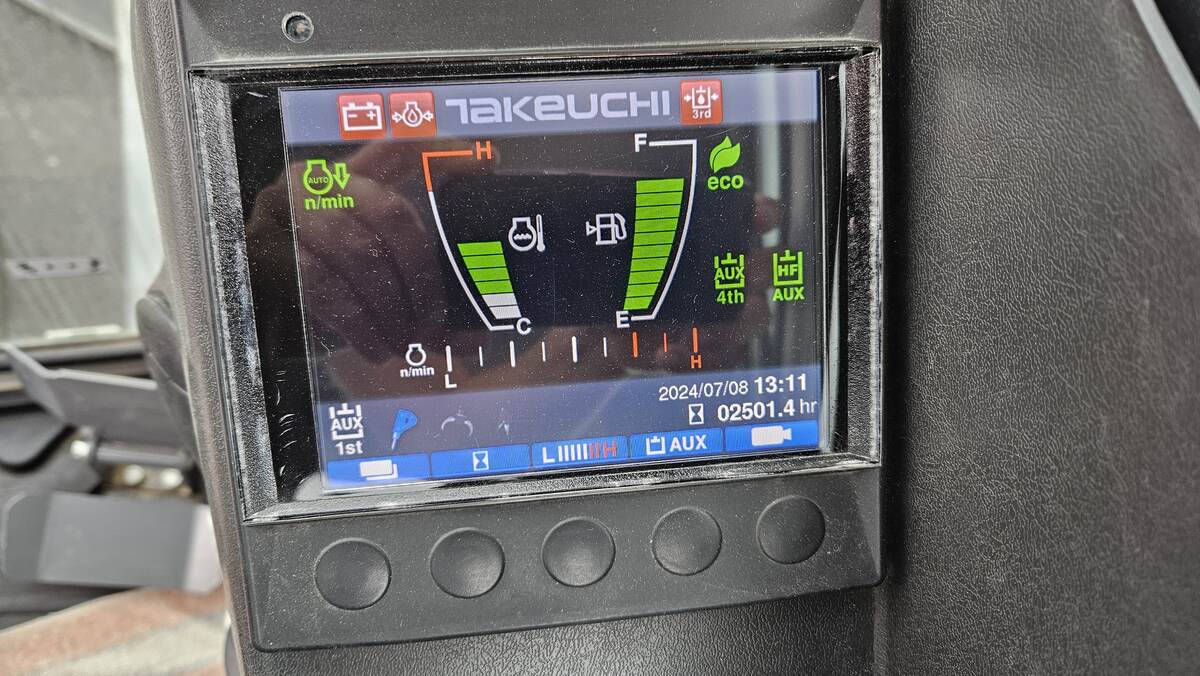

- Adjustable flow rates: Via the display
- 1st control circuit: 3 storage locations, max. 100 l/min
- 2nd control circuit: 1 storage space, max. 60.6 l/min
- 3rd control circuit: For hydraulic quick release plate
- 4th control circuit: 1 storage space, max. 60.6 l/min
- Detent Mode: Continuous operation of the hammer line
- Auto tank: pressure-free return during hammer operation
- Automatic pressure relief: The control circuits when the quick release plate is actuated
- Load-sensing pump: Performance-controlled for greater efficiency
- Hydraulic tank ventilation
- Pilot-operated load holding valve: For lifting and arm cylinders (TB290-2 V: also adjusting cylinders)
- End position damping: In lifting, arm and swivel cylinders

This comprehensive and modernly equipped machine offers an optimal combination of performance, safety and comfort to efficiently handle demanding jobs.
