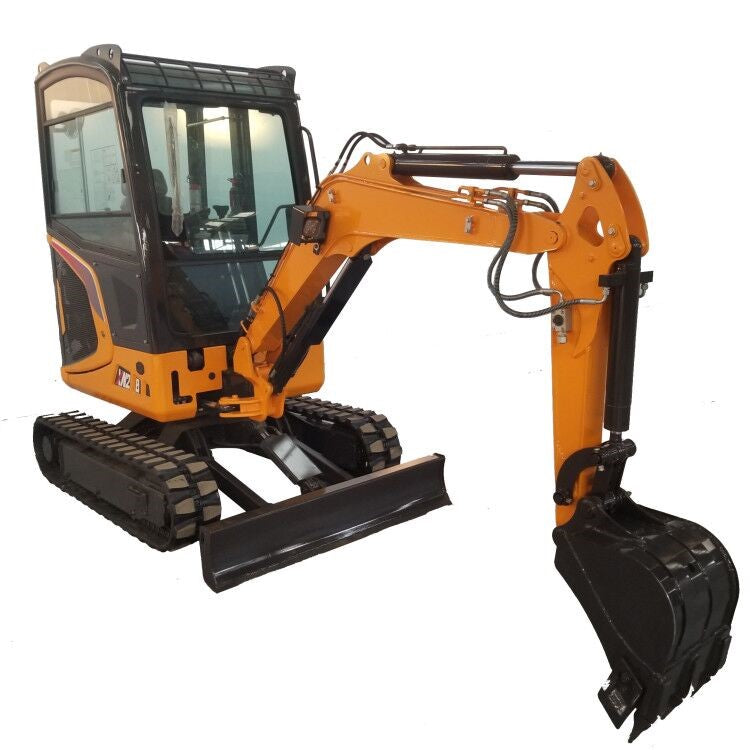

Tracked excavator 2.5 T - excavator 21 HP This

Model XN28
Manufacturer RETTER MACHINERY CO. LTD
Own weight 2690kg
Bucket capacity 0.06cbm
Blade position 500mm
Engine Yanmar（3TNV80-SPSY2）
Rated power 14.6 kw/2400r/min
Displacement 1,267L
Bore three cylinder, water cool
TAIFENG main pump
Pump flow 46L/min
Hydraulic oil tank capacity 25L
Engine oil tank capacity 2.8(1.3)L
Diesel tank capacity 30 L
Valve TAIFENG
EATON swivel motor
EATON traction motor

Main dimensions
Total dimensions (LxWxH) 3918x1454x2469mm
Wheelbase 1440mm
Total length of the route 1892mm
Ground clearance of the upper chassis 535mm
Counterweight turning radius 885mm
Track width 250 mm
Chassis ground clearance 460 mm
Bucket digging force 13.5kn
Arm digging force 10.1kn
Theoretical maximum traction 17.5Kn
Track height 455 mm
Boom swing to the left 539mm
Boom swing to the right 477mm

WORK AREA
Max. digging depth 2500mm
Max. vertical digging depth 2093mm
Max. digging height 4153mm
Max. dumping height 2909mm
Max. digging radius on the ground 4168mm
Minimum. Turning radius 1857mm
