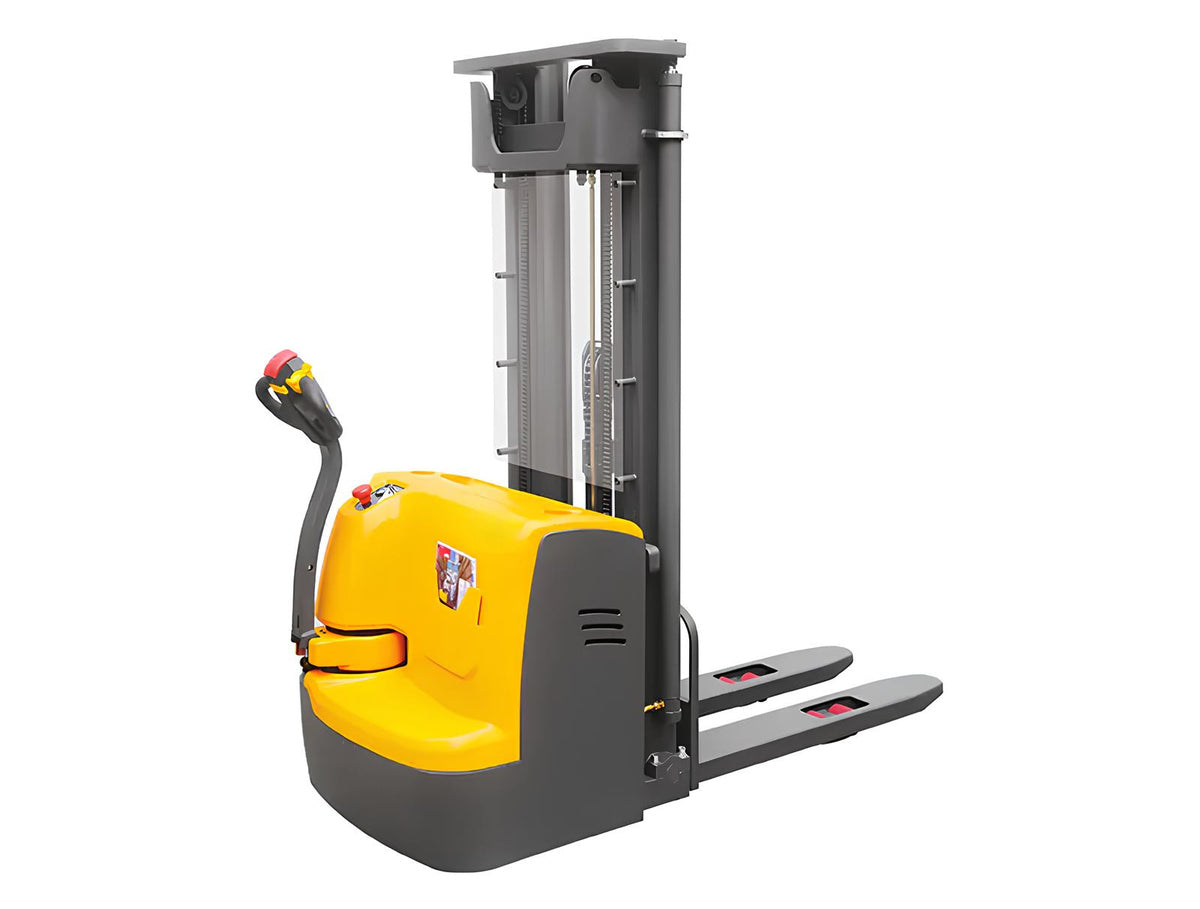

Electric forklift CDD15R-E - your solution for load capacities up to 1,500 kg
  • Drive: Electric
  • Operator Type: Handheld
  • Rated load capacity/load: 1,500 kg

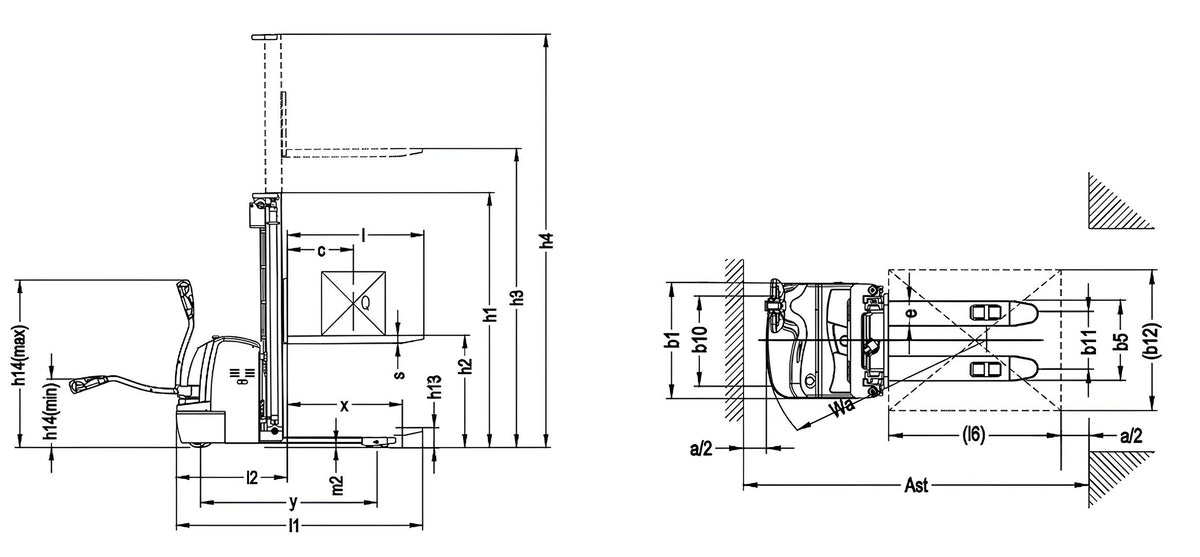

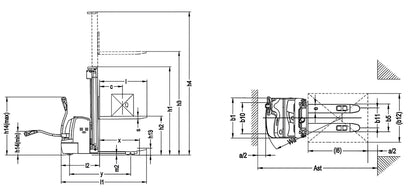

  • Load center distance: c = 600 mm
  • Load distance (center of drive axle to fork): x = 770 mm
  • Wheelbase: y = 1,383 mm
  • Own weight: 1,185 kg
  • Axle load (loaded, front/rear): 1,280 kg / 1,070 kg
  • Axle load (unloaded, front/rear): 650 kg / 200 kg
  • Tyres: polyurethane
  • Front tire size: Ø 250 mm x 70 mm
  • Rear tire size: Ø 80 mm x 70 mm
  • Additional wheels (dimensions): Ø 150 mm x 60 mm
  • Number of wheels front/rear (x = driven wheels): 1x+1/4
  • Front track width: b10 = 520 mm
  • Rear track width: b11 = 400 mm / 525 mm
  • Height with retracted mast: h1 = 2,054 mm
  • Free stroke: h2 = 1,570 mm / 1,740 mm / 1,940 mm
  • Maximum lifting height: h3 = 4,500 mm
  • Height with extended mast: h4 = 5,030 mm /
  • Height of drawbar in driving position (min./max.): h14 = 670 mm / 1,300 mm
  • Height of the wheel arms: h8 = 81 mm
  • Height (lowered): h13 = 90 mm
  • Total length: l1 = 1,975 mm (2,055 mm)
  • Length to the front edge of the forks: l2 = 905 mm
  • Total width: b1/b2 = 820 mm
  • Fork length (according to DIN ISO 2331): s/e/l = 60 mm / 170 mm / 1,070 mm (1,150 mm)
  • Fork width: b5 = 570mm / 695mm
  • Ground clearance (center of wheelbase): m2 = 26 mm
  • Aisle width for pallets (1,000 x 1,200 mm, across): branch = 2,480 mm
  • Aisle width for pallets (800 x 1,200 mm, lengthwise): branch = 2,450 mm
  • Turning radius: Wa = 1,575 mm
  • Driving speed (loaded/unloaded): 5.8 km/h / 6.0 km/h
  • Lifting speed (loaded/unloaded): 0.09 m/s / 0.16 m/s
  • Lowering speed (loaded/unloaded): 0.15 m/s / 0.16 m/s
  • Maximum climbing ability (loaded/unloaded): 6% / 15%
  • Service brake: Electromagnetic
  • Traction motor power (S2 60 min): 1.2 kW (alternating current)
  • Lift motor power (S3 15%): 2.2 kW
  • Battery voltage / nominal capacity (K5): 24 V / 200 Ah
  • Battery weight: 160kg
  • Sound pressure level at the driver's seat: 70 dB(A)
