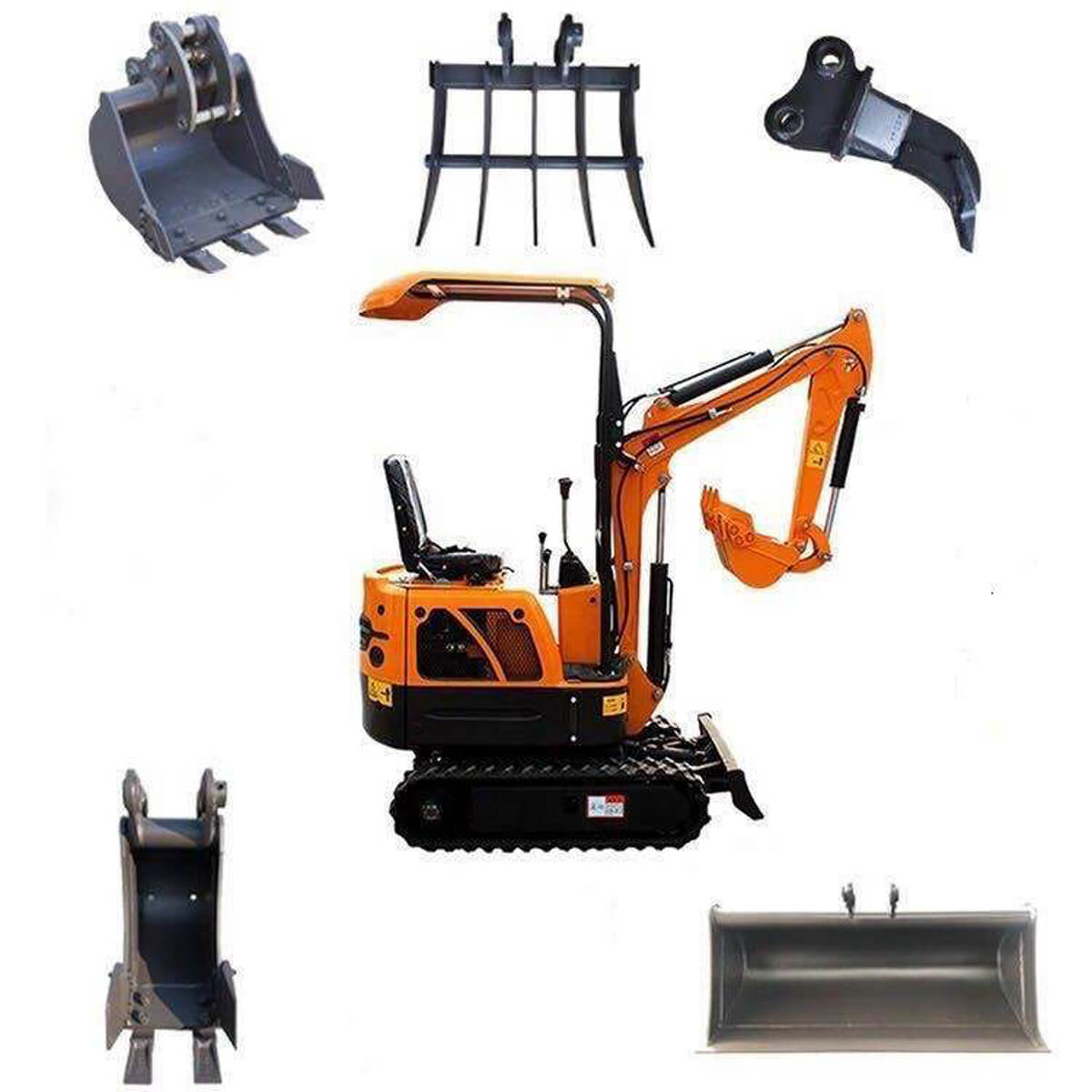

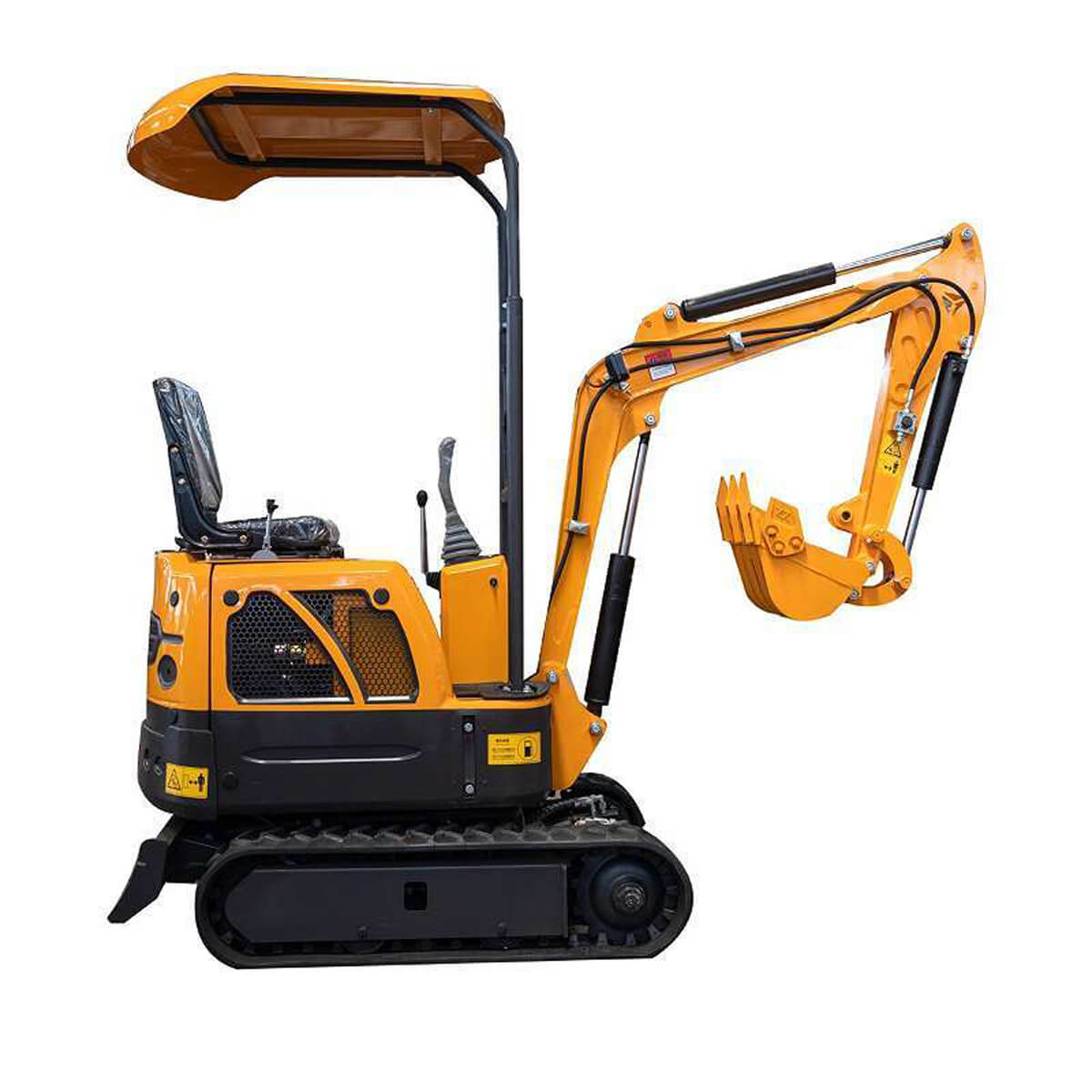

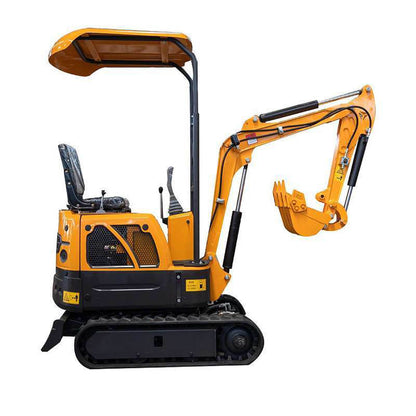

STARK XN10 S with 1080kg dead weight + swivel arm bend arm
![]()
- Euro 5 diesel engine
- Engine: Koop diesel engine with (10.7 HP)
- Cooling: Hydraulic oil cooler
- Max. torque: 25 Nm
- Max. speed: 3600 r/min
- Digging force: 7.5 kN
- Fuel tank capacity: 9.5 liters
- Electric starter: 12 volts
- Maximum climbing ability: 35°
- Maximum speed: 5 km/h
- Ground pressure: 0.35 kgf/cm²
- Dimensions of tracked chassis: 1090 x 180 x 320 mm (LxWxH)
- Oil tank capacity: 17 liters (HLP46)
- Panning radius: 360°
- Swing speed: 13 r/min
- Hydraulic pump: gear pump
- Working pressure: 180 bar
- Maximum pressure: 230 bar
- Hydraulic flow: 40 liters per minute
- Digging depth: 1,850 mm
- Loading height: 2150 mm
- Ground reach: 2,400 mm
- Dimensions: 2550x 900-1100 x 2330 mm (LxWxH)
- Product/Shipping Weight: 1080 kg
- Special features: Kinkmatic (120°), hydraulic
- Hydraulic oil cooler
- Roof can be folded down
- Hydraulic shield
- Hammer line

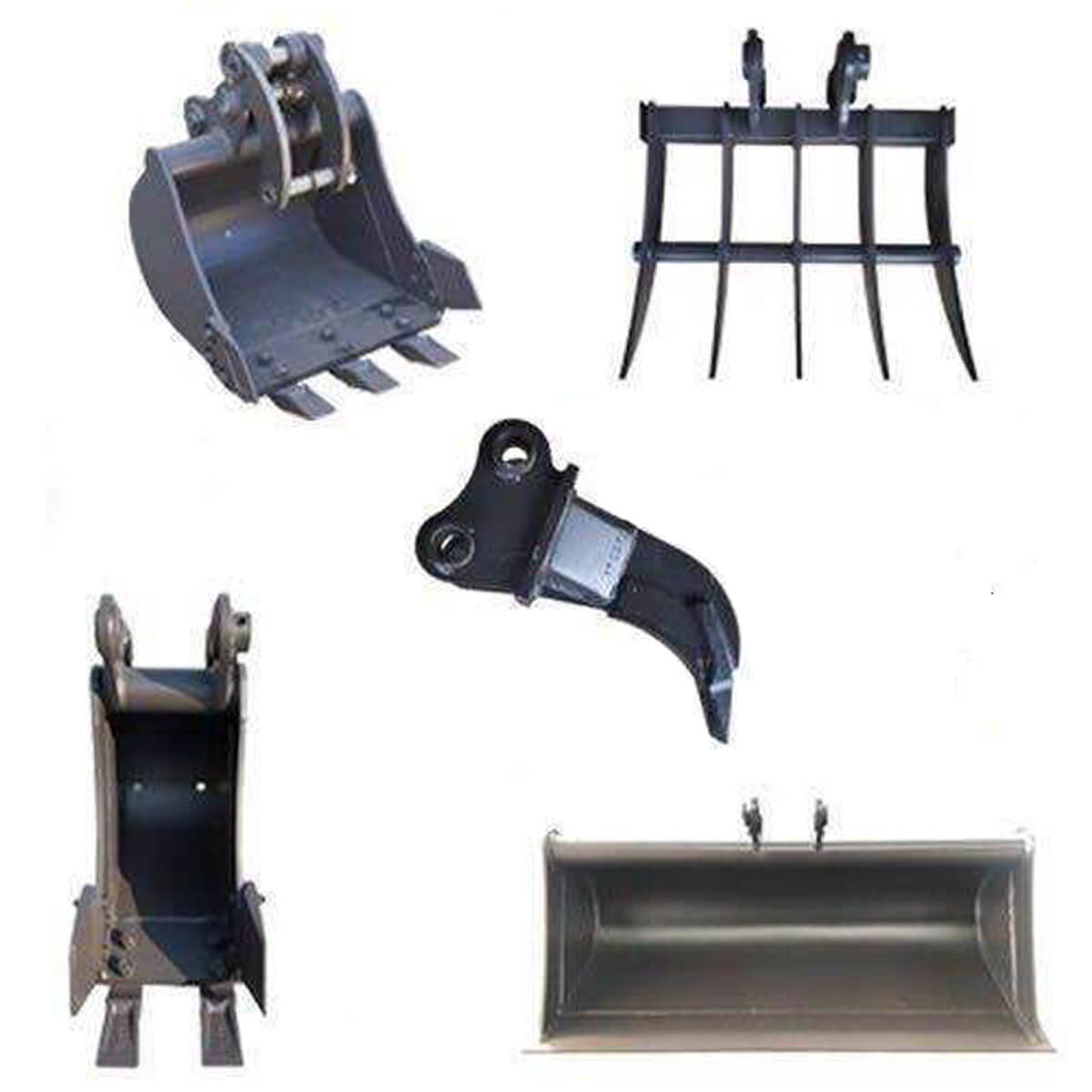

- The shovel package included is available in different versions
- Shovel 20s 40s 80s
- Rake
- Fang
Operating instructions
