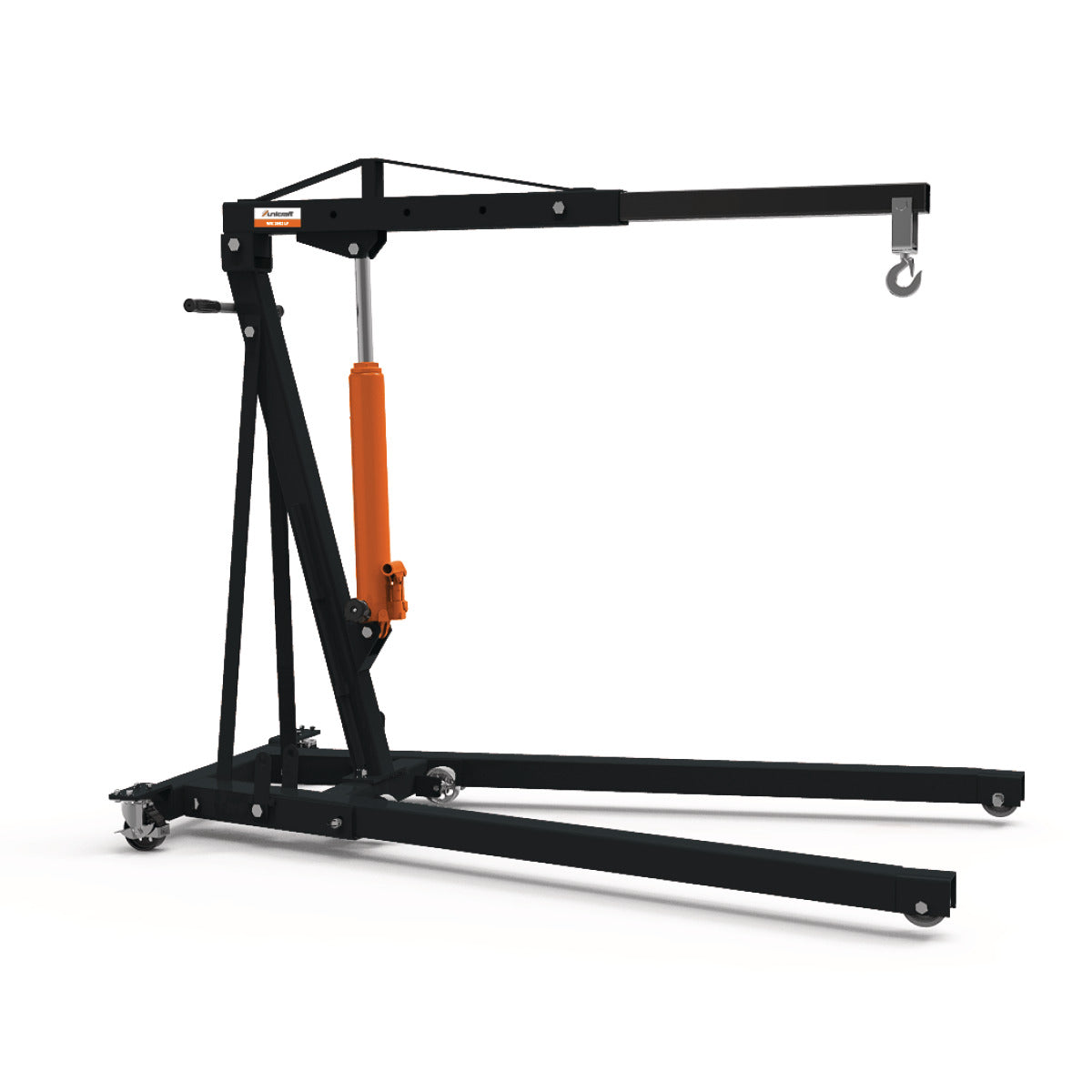

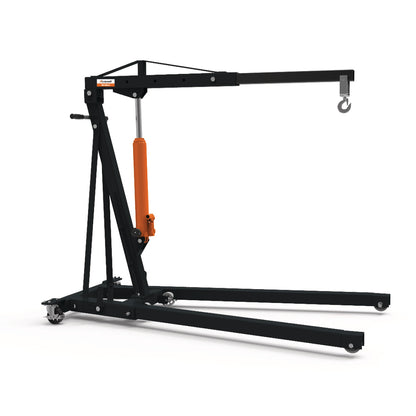

Workshop crane with low ground clearance | GGM Tools

• Crane boom can be adjusted in four different positions, load capacity depending on the radius
• Safety hook on the boom arm
• Four robust swivel castors for secure stability during use, two of which have a parking brake
• Easy to move with two swivel castors each with a parking brake and transport castors when folded
• Space-saving storage thanks to foldable foot tubes
• Can be set up and dismantled quickly
• Two swivel castors with parking brake for maximum flexibility and stability
• Space-saving storage thanks to foldable foot tubes

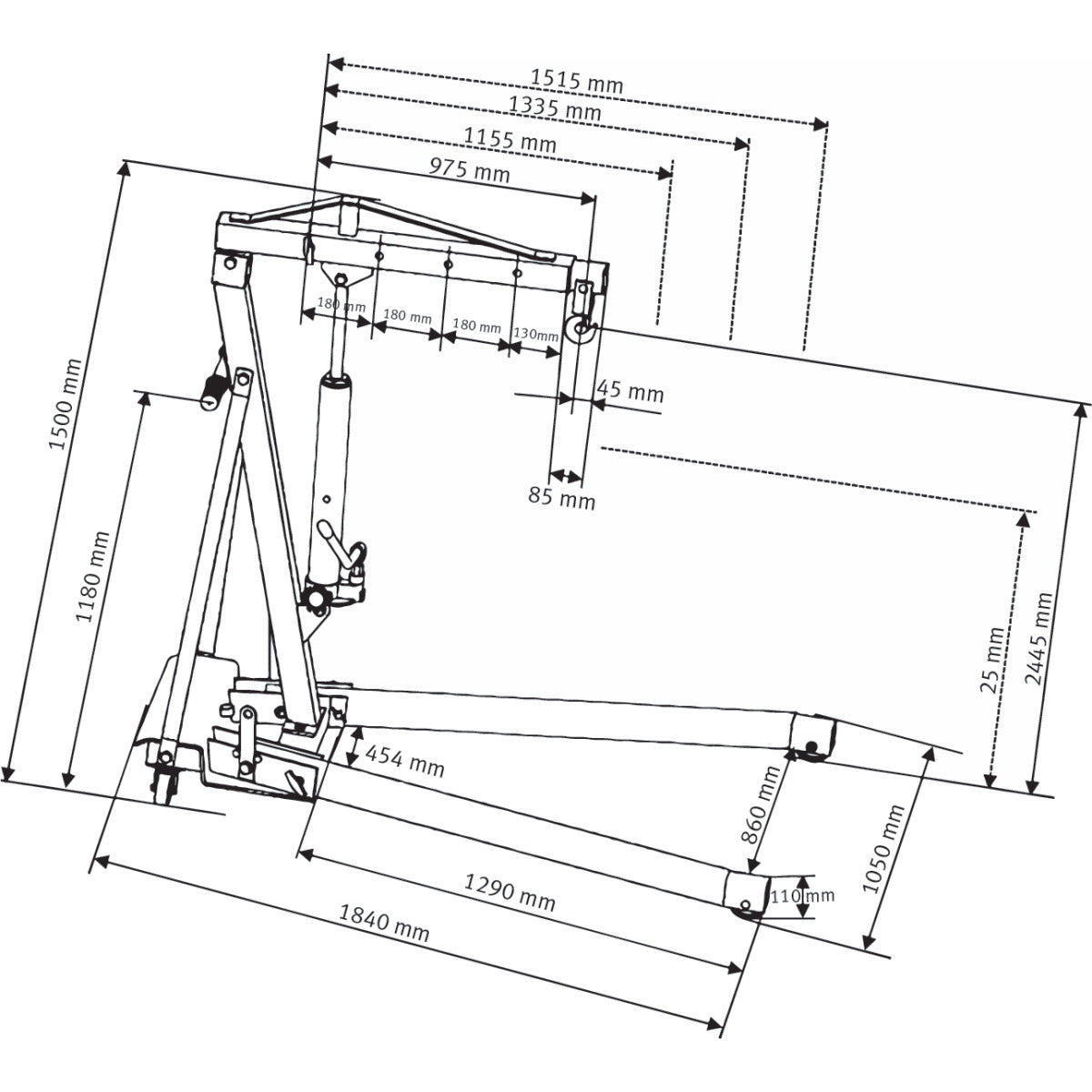

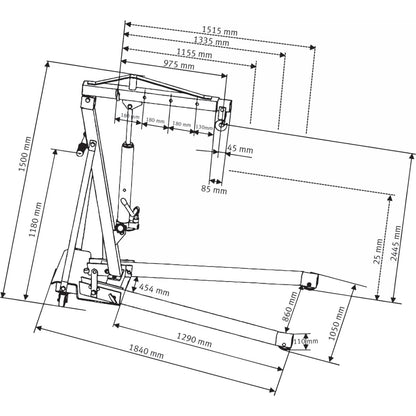

Technical data:

• Load capacity: 0.5t/1t/1.5t/2t
• Lift arm length: 1515mm / 1335mm / 1155mm / 975mm

Lifting height:

• Minimum lifting height: 25 mm
• Maximum lifting height: 2445 mm

Dimensions and weights:

• Lower ride height: 110 mm
• Length: 1840mm

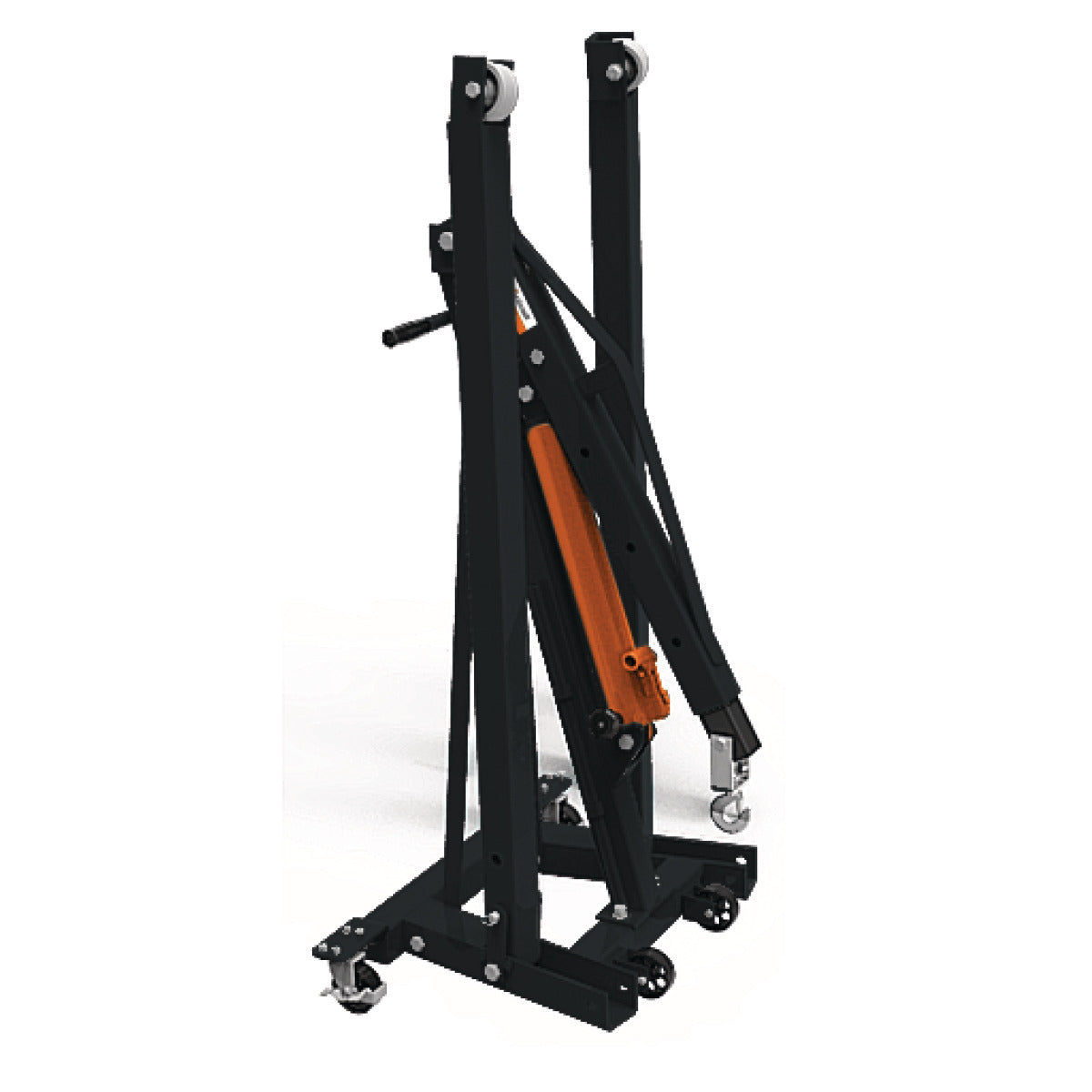

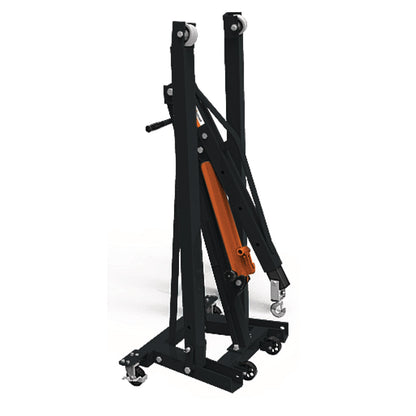

• Folded length: 850 mm
• Width/Depth: 1050mm
• Folded width/depth: 558 mm
• Height: 1490mm
• Folded height: 1600 mm
• Weight: 102kg
• Packaging dimensions (L x W x H): 1840 x 1060 x 1400 mm
